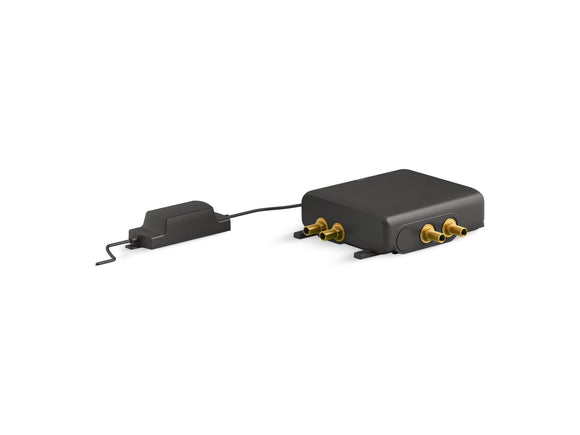

KOHLER K-28209 Anthem Two-port digital thermostatic valve

Digital thermostatic technology provides accurate, precise and consistent temperature and flow control in your showering system. This precision-engineered, best-in-class KOHLER Anthem digital thermostatic valve is designed for use with the Anthem digital control. Its easy plug-and-play design makes installation simple. With two independently controllable outlet ports, this valve is ideally suited for applications where only one or two shower outlets are required. Optional built-in eco mode lets you use just one outlet at a time to conserve water.

• Digitally controlled thermostatic mixing valve
• Antiscald protection
• Built-in temperature and flow control
• Selecting "low flow" mode on setup limits total flow to 1.75 gpm (6.6 lpm) for installations where water conservation or CEC-compliance is desired
• Use with the KOHLER Konnect app to unlock additional Anthem system features, Kohler-developed experiences, and system updates
• Up to 12 gpm (45.4 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 9.5 gpm (36 lpm) from one outlet
• Two independently controllable 1/2" (13 mm) outlets with brass tube connections
• 1/2" (13 mm) inlets with brass tube connections
