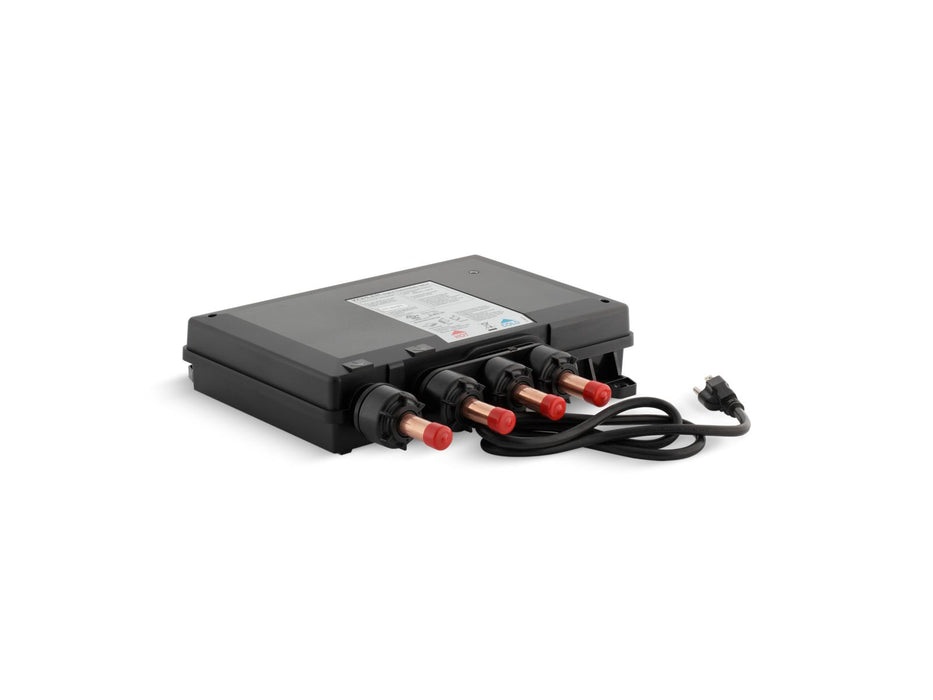

KOHLER K-528-PM DTV Two-port digital thermostatic valve

SKU K-528-PM-NA
Original price $1,107.25
Original price $1,107.25 - Original price $1,107.25
Original price $1,107.25
Current price $830.43
$830.43 - $830.43
Current price $830.43
Availability:
in stock, ready to be shipped

Digital thermostatic technology provides accurate, precise and consistent temperature control in your DTV showering system. This precision-engineered, best-in-class digital thermostatic valve is designed for use with the DTV Prompt two-port digital interface or DTV Mode digital interface.Its easy plug-and-go design makes installation simple. With two independently controllable outlet ports, this valve is ideally suited for applications where only one or two shower outlets are required.


  • Digitally controlled thermostatic mixing valve
  • Antiscald protection
  • Up to 13 gpm (49.2 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 8 gpm (30.3 lpm) from one outlet
  • Two independently controllable 1/2" (13 mm) outlets with copper tube connections
  • 1/2" (13 mm) inlets with copper tube connections

Additional Resources:
Spec Sheet
Installation Instructions
Parts Sheet

Recommended and Optional Accessories:
KOHLER K-29200 DTV Mode Wall-mount bath filler digital interface
KOHLER K-29201 DTV Mode Wall-mount bath/shower digital interface
KOHLER K-29202 DTV Mode Dual-outlet shower digital interface
KOHLER K-29202-E DTV Mode Dual-outlet shower digital interface with eco-mode diverter
KOHLER K-29204 DTV Mode Deck-mount bath filler digital interface
KOHLER K-29205 DTV Mode Deck-mount bath/shower digital interface
