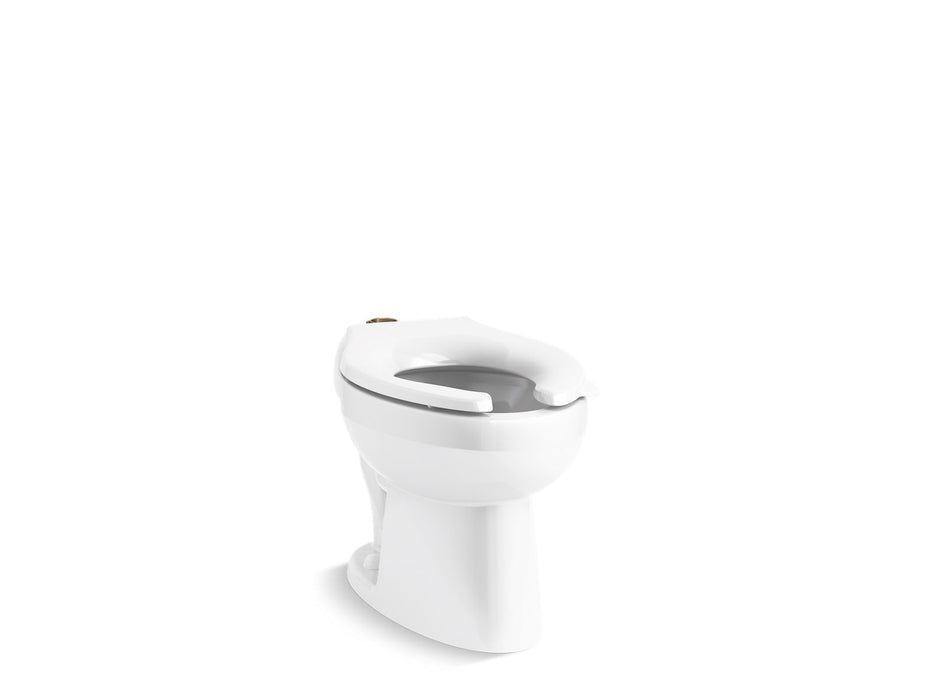

KOHLER K-96053-B Wellcomme Ultra Floor-mount top spud flushometer bowl

The Wellcomme Ultra floor-mount flushometer bowl features a revolutionary flushing engine, a refined aesthetic design, and a second pair of bolt holes to provide great stability. Measuring 15-1/4” to the top of the rim, the Wellcomme Ultra is perfect for smaller restrooms and stalls. The Ultra engine represents a breakthrough in flush performance, tolerating a wide range of water supply conditions found in R&R and new construction. This Wellcomme Ultra top spud is listed from 1.0 to 1.6 gpf and performs well at every flush interval, making it uniquely effective with dual flush valves. It has been proven with all manner of valves (diaphragm, piston, manual, and electronic) from a variety of manufacturers.

• Elongated bowl, standard height
• 4-bolt base for added stability
• 1-1/2" (38 mm) top spud
• 10" x 7" (254 mm x 178 mm) water surface
• 10" or 12" (254 or 305 mm) rough-in
• 1.0 gpf (3.8 lpf), 1.1 gpf (4.2 lpf), 1.28 (4.8 lpf), or 1.6 gpf (6.0 lpf) depending on flushometer specified
• 2-1/8" (54 mm) fully glazed trapway
